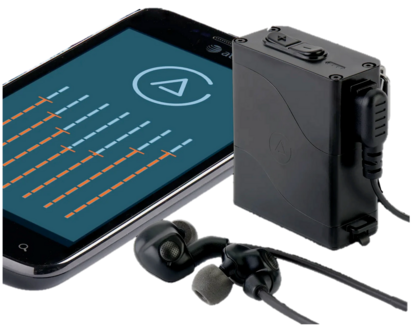

3DME Gen2 is a state-of-the-art Active Ambient IEM System that captures and adds controlled stage ambience to the monitor mix for spatial awareness with both earpieces securely in place.
Subcompact, USB-rechareable bodypack mixer with +/- ambience level control, housing 7-band EQ, threshold-adjustable limiter, and settings library.
- Gen2 mixer is USB-rechargeable with 8 hours batter life.
- Body pack provides ambient level up/down buttons, programmed either for step-wise action or pre-selected levels, for quick in-use adjustment of ambience level.
- Selectable bypassing of all Monitor signal processing, for unimpeded outboard control.
Patented active signal processing enables distortion-free ambience capture up to 135 dB-SPL.

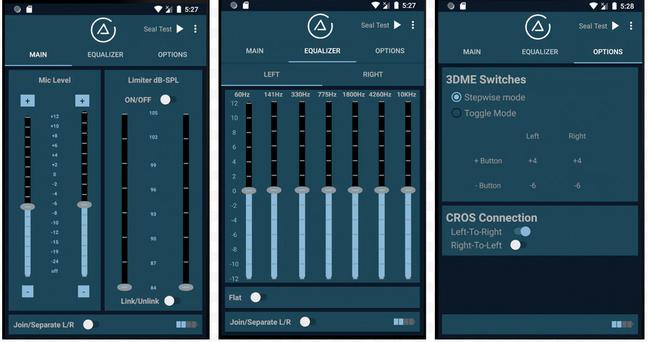

Free ASI Audio app allows control of bodypack processing via any iOS or Android personal device via Bluetooth
Field-replaceable cable (matte silver or black), 53 inches long and secured by nuylon screw at earpieces
Compatible with all popular IEM systems and portable audio devices
Selectable CROS connection for unilateral hearing loss compensation.
App-activated Seal Test tones enable confirmation of earphone fit and sealing.

Includes audio jumper cable, USB charging cable, IEM cleaning tool, and shirt clip - all in a custom carrying case

Custom Silicone Sleeves for 3DME

Frequency Response: 20-20,000 Hz
Ambience mics input overload: 135 dB-SPL
Maximum Output, 500 Hz: 122 dB SPL
Input Sensitivity (500 Hz) - 102 dB-SPL for -20 dBV input
Limiter Threshold: lower threshold 76 dB; can be set up to 105 dB-SPL, stereo or left/right, or Off for external limiting
Stereo Equalizer: +/-12 dB, 7 bands centered at 60, 140, 330, 770, 1800, 4300, and 10,000 Hz.
- Adjustable in stereo or separately left/right for ambience and monitor mix feeds
Bodypack battery life: Gen2 upgrade to full 8 hours. USB rechargeable lithium-ion.
- Charge Time (fully depleted battery), 5 hours.
Isolation (Custom IEMs): up to 45.5 dB; broadband avg. 37 dB
Noise Reduction Rating (NRR) (Custom IEMs): 29 dB

Welcome to the next generation of in-ear monitor technology: Music Enhancement. The 3DME Gen 2 in-ear monitors use active ambient earphones with embedded binaural microphones to create 3D spatial awareness via a compact, rechargeable belt pack mixer with Bluetooth control. Use your smartphone or tablet to wirelessly create a truly customized in-ear monitoring experience, allowing you to blend the on-stage sound of your amp, the audience, and ambient surroundings with your monitor mix. The 3DME app, compatible with IOS and Android, provides access to powerful onboard sound sculpting tools like 7-band EQ and limiter control, plus an option for Cross-lateral Routing Of Signal (CROS) for artists with unilateral hearing loss. Gen 2 has a monitor bypassing capability, whereby limiter and EQ functions can still be controlled from Front of House or a Monitor position when activated. 3DME Gen 2 has a lower limiter threshold, start up squeal suppressor (useful if the 3DME is turned on prior to inserting the ear pieces). 3DME Gen 2 has a battery life to full eight hours on a single charge. Create a library of personal presets for easy future recall; very convenient when gigging in multiple projects and widely varying venue types. Used without a monitor feed, 3DME BTG2 becomes a flexible high fidelity earplug system, with customized sound signature and active level control.

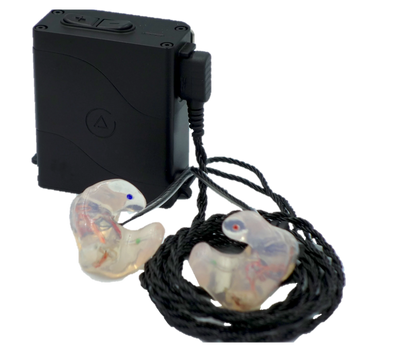

The Custom Tour Gen2 its the fully custom, soft silicone

in-ear monitors for the 3DME from ASI Audio x Sensaphonics.

Choose between dual or quad balanced armature driver configuration.

The Custom Tour Gen2 features embedded ambient mics and is distortion-free up to 135 dB. The system also features 7-band stereo EQ and limiter onboard with settings library, all controlled via the ASI Audio app. Gen2 includes choice of stereo or left/right processing, which is ideal for creating a personalized, balanced sound. The system includes a processing bypass option for monitor feed, plus an option for Cross-lateral Routing Of Signal (CROS) for artists with severe unilateral hearing loss.

The Custom Tour Gen2 system include: custom-fit tour IEMs, rechargeable body pack mixer, and ASI Audio app for setup and control via IOS and Android devices, as well as one pair of universal-fit active ambient IEMs.
